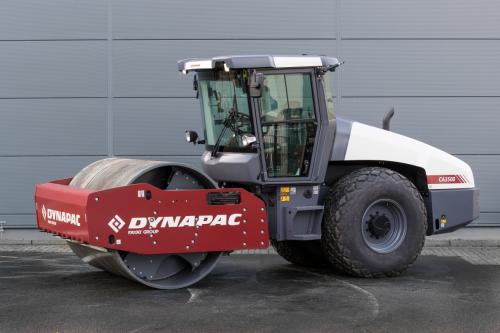

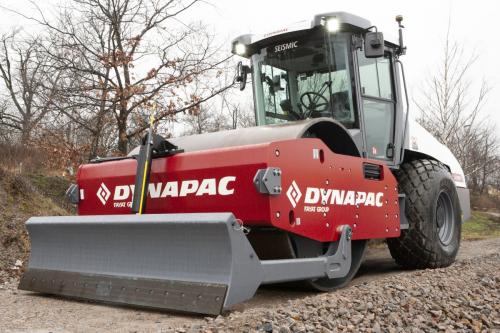

DYNAPAC CA3500D
Share
Description
TECHNICAL DATA
| Masses | |
| Operating mass (incl. ROPS) | 11900Â kg |
|---|---|
| Operating mass (incl. Cab) | 12100Â kg |
| Module mass (front/rear) | 7600 kg/ 4500 kg |
| Max. operating mass | 13800Â kg |
| Traction | |
| Speed range (Dual/TC/AS) | 4/6/7/12 km/h |
| Vertical oscillation | ±9° |
| Tyre size (8 ply) | 23,1 x 26 AW |
| Max. theoretical gradeability | 55Â % |
| Compaction | |
| Static linear load | 36Â kg/cm |
| Nominal amplitude (high/low) | 1.9 mm/ 0.9 mm |
| Centrifugal force (high/low amplitude) | 280 kN/ 170 kN |
| Vibration frequency (high/low amplitude) SEISMIC available (values for manual mode) |
31 Hz / 34 Hz |
| Engine | |
| Manufacturer/Model | Cummins QSF3.8 (IV/T4final) |
| Type | Water cooled turbo Diesel |
| Rated power, SAE J1995 | 97 kW (130 hp ) @ 2200 rpm |
| Fuel tank capacity | 255Â l |
| DEF tank capacity | 20Â l |
| Alternative Engine | |
| Manufacturer/Model | Cummins F3.8 (V) |
| Type | Water cooled turbo Diesel |
| Rated power, SAE J1995 | 100 kW (135 hp) @ 2,200 rpm |
| Alternative Engine | |
| Manufacturer/Model | Cummins QSB4.5 (IIIA/3) |
| Type | Water cooled turbo Diesel |
| Rated power, SAE J1995 | 97 kW (130 hp ) @ 2200 rpm |
| Hydraulic system | |
| Driving | Hydrostatic |
| Vibration | Hydrostatic |
| Steering | Hydrostatic |
| Service brake | Hydrostatic in forward and reverse lever. |
| Parking/ Emergency brake |
Failsafe multidisc brake in drum gear box and in rear axle. |
