TECHNICAL DATA

Masses
Operating mass (incl. ROPS) 10100 kg
Operating mass (incl. Cab) 10300 kg
Module mass (front/rear)
Module mass (front, std/rear) 5600/4700 kg
Max. operating mass 11900 kg
Traction
Speed range 0 – 12 km/h
Tyre size (8 ply) 23,1 x 26 AW
Max. theoretical gradeability 51 %
Vertical oscillation ±9°
Compaction
Static linear load 26 kg/cm
Nominal amplitude (high/low) 1.8 mm/ 0.9 mm
Vibration frequency (high/low amplitude)
SEISMIC available (values for manual mode)
33 Hz / 34 Hz
Centrifugal force (high/low amplitude) 250 kN/ 130 kN
Engine
Manufacturer/Model Cummins QSF3.8 (IV/T4final)
Type Water cooled turbo Diesel
Rated power, SAE J1995 89 kW (120 hp) @ 2,200 rpm
Fuel tank capacity 255 l
DEF tank capacity 20 l
Alternative Engine
Manufacturer/Model Cummins F3.8 (V)
Type Water cooled turbo Diesel
Rated power, SAE J1995 100 kW (135 hp) @ 2,200 rpm
Alternative Engine
Manufacturer/Model Cummins QSB4.5 (IIIA/T3)
Type Water cooled turbo Diesel
Rated power, SAE J1995 97 kW (130 hp) @ 2,200 rpm
Hydraulic system
Driving Hydrostatic
Vibration Hydrostatic
Steering Hydrostatic
Service brake Hydrostatic in forward and reverse lever.
Parking/
Emergency brake
Failsafe multidisc brake in drum gear box and in rear axle.

More information on

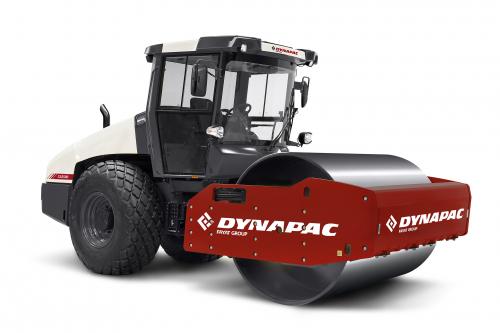

DYNAPAC CA2500D
