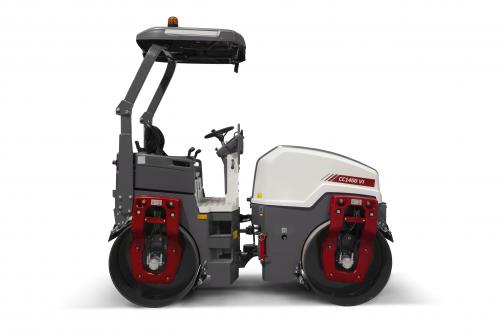

DYNAPAC CC1400 VI
Share
Share on facebook
Share on twitter
Share on linkedin
Share on email
Description
TECHNICAL DATA
| Masses | |
| Max. operating mass | 5130 kg |
|---|---|
| Operating mass (incl. ROPS) | 4300 kg |
| Module mass (front/rear) | 2080 kg/ 2220 kg |
| Traction | |
| Speed range | 0-9 km/h |
| Vertical oscillation | ±10° |
| Max. theoretical gradeability | 37 % |
| Compaction | |
| Vibration frequency (high/low amplitude) | |
| Engine | |
| Manufacturer/Model | Kubota V2203-M (IIIA) |
| Type | Water cooled diesel engine |
| Rated power, SAE J1995 | 35 kW (48 hp) @ 2700 rpm |
| Fuel tank capacity | 60 l |
| Alternative Engine | |
| Manufacturer/Model | Kubota V2403-CR E4B (T4) |
| Type | Water cooled diesel engine |
| Rated power, SAE J1995 | 37 kW (50 hp) @ 2700 rpm |
| Alternative Engine | |
| Manufacturer/Model | Kubota V2403-CR E5B (StageV) |
| Type | Water cooled diesel engine |
| Rated power, SAE J1995 | 37 kW (50 hp) @ 2700 rpm |
| Hydraulic system | |
| Driving | Axial piston pump with variable displacement. Radial piston motors (2) with constant displacement. |
| Vibration | Gear pump/motors with constant displacement. |
| Steering | Gear pump with constant displacement. |
| Service brake | Hydrostatic in forward and reverse lever. |
| Parking/ Emergency brake | Failsafe multidisc brake in both drums. |
| History | |
| Production start (year) | 2020 |
| Production end (year) | |
| Note | |
